Hydraulic Flanges & Components

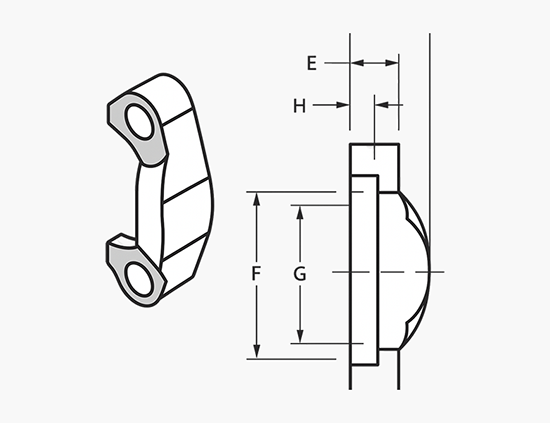

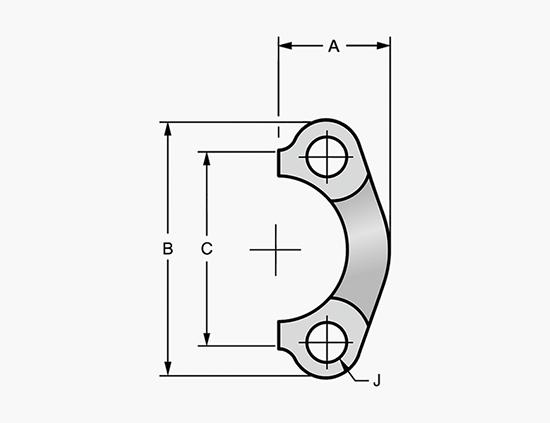

Split-Flanges Clamps design gives you a tilt proof clamps. By locating the plane of the Split-Flanges Clamps half bolt centerlines so that it passes through the center of force of the flanged head on the Split-Flanges Clamps half, unbalanced moments are eliminated. This design principle prevents tilting of the clamps half and extrusion of the O-Ring. It conforms to SAE Standard J518.
Use of the highly efficient and widely used static O-Ring seal eliminates the use of gaskets, tapered threads and sealing compounds. There are no spiral leakage paths. The connector may be assembled with small automotive wrenches in tight quarters with low torque requirements. Large wrenches and high assembly forces are not required.
SAE J518 Split & Captive Flanges

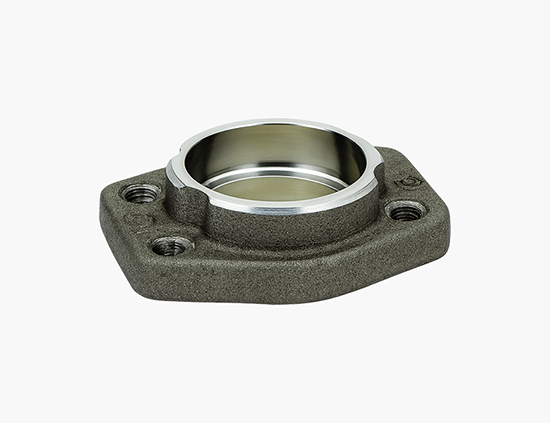

Socket Weld Flanges
Socket Weld Flanges are designed as per ISO 6162 - 3000 psi series & 6000 Psi Series only. Socket Weld Flanges are used for Hose assembly where easy removal piping can be possible with in close area Socket Weld Flanges are in 2 halves attached with Weld nozzle with Allen bolts, Nuts & O Ring Seal.

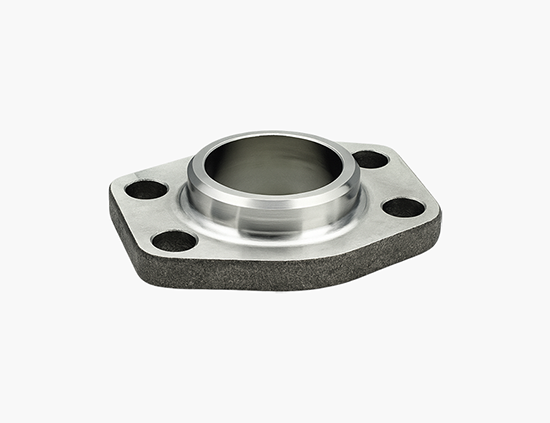

Butt Weld Flanges
Butt Weld Flanges are designed as per ISO 6162 - 3000 PSI series & 6000 PSI Series only. Butt Weld Flanges are used for Hose assembly where easy removal piping can be possible with in close area Butt Weld Flanges are in 2 halves attached with Weld nozzle with Allen bolts, Nuts & O Ring Seal.

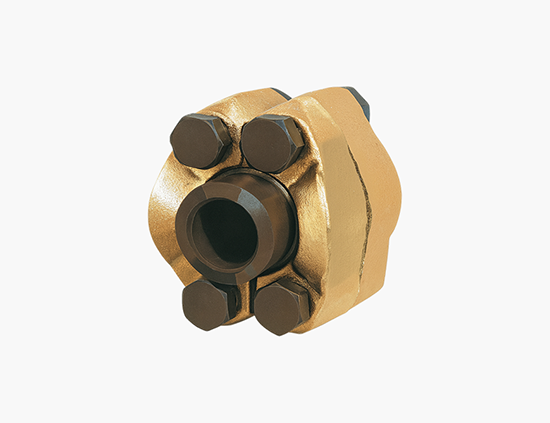

Weld Nozzle Flanges
Weld Nozzle Flanges are designed with butt weld type to weld the pipe on both the side to the attached nozzle. Weld Nozzle Flanges are consists of set of split flanges assembled with weld nozzle both side with O Ring, Allen Bolts & Nuts. Weld Nozzle Flanges are easy for assembled, weld & ease of removal during assembly or disassembly of Piping Joints.
